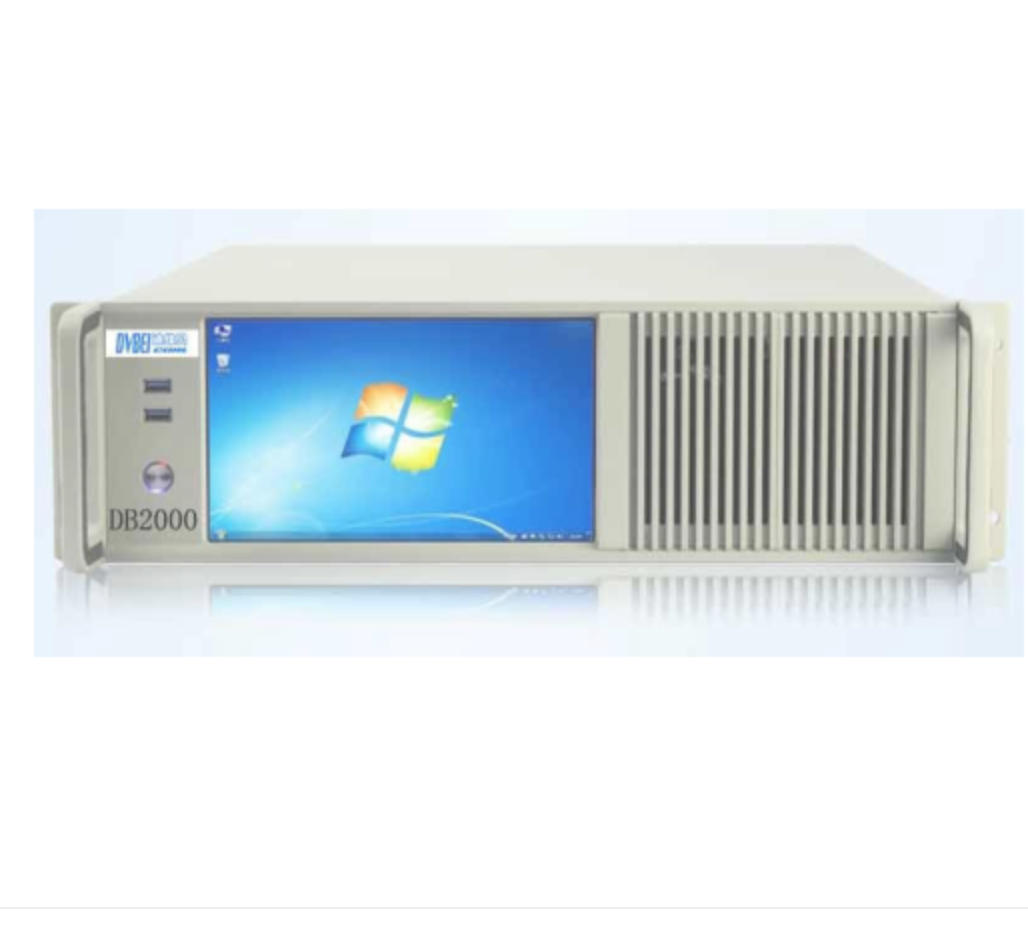

DvBei DB2000 Multi-Standard TV/DAB Signal Generator

Full digital TV signal support；
Frequency range covering VHF, UHF and L-band；
Supports the Digital Audio DAB(+) standard；

Technical features：

 ●  8" LCD display
 ● 3U Portable Industrial Chassis
 ● Frequency range: 40MHz - 2150MHz
 ● Global digital TV and audio broadcasting standards：DAB(+)*,DVB T/H，DVB-C，DVB-T2*，DVB-C2*，DVB-S/ S2*， DVB-S2X*, ATSC，J.83b， DTMB(DMB-TH, ADTB- T)*, ISDB-T*，ISDB-S*,ISDB-S3*, ATSC 3.0*
 ● DAB frequency range：DAB Mode：40~872MHz DAB-L Mode: 950~2150MHz；
 ● Carries six universal DAB channel tables.;
 ● Support for DAB file formats NI,NA,ETI；
 ● Zero-jitter multiple IP stream playback, UDP or RTP + optional FEC unicast or multicast
 ● Output level: 0dBm to -60dBm, in 0.5dB steps，  Options: -120dBm to +10dBm*；
 ● Support MPEG-2、MPEG-4、H.264、H,265、AVS+  Coding standards
 ● Supports simultaneous output of VHF/UHF segment signals
 ● TS Streaming File Playlist

 Application examples:

 ● Digital TV standard signal generator

 ● Signal sources for set-top box and all-in-one development, performance testing and production testing

 ● Radio and television transmission system simulation, demonstrations, exhibitions, electrical outlets, etc.

 ● DTV chip development (tuner/decoder)

*Asterisks are optional*Asterisks are optional
